PRODUCT SELECTION
Chevron Conveyor Belts
Profiled rubber conveyor belts for inclined conveying of powders, granules and small lumps. Pattern geometry must suit the material and conveyor.
CONSTRUCTION & APPLICATION
Match the belt to the duty.
Rubber belt carcass with raised conveying profiles.
- Inclined aggregate handling
- Granular bulk materials
- Packaged material handling
CATALOGUE REFERENCE
Specification starting points
| Item | Details |
|---|---|
| Profiles shown | C6, V6, C12, C15, C25, Y32 |
| Profile height examples | 6, 12, 15, 25 and 32 mm |
| Widths listed across profiles | 300–1,800 mm; individual profiles have narrower ranges |
| Incline selection | Material, moisture, loading and profile dependent |

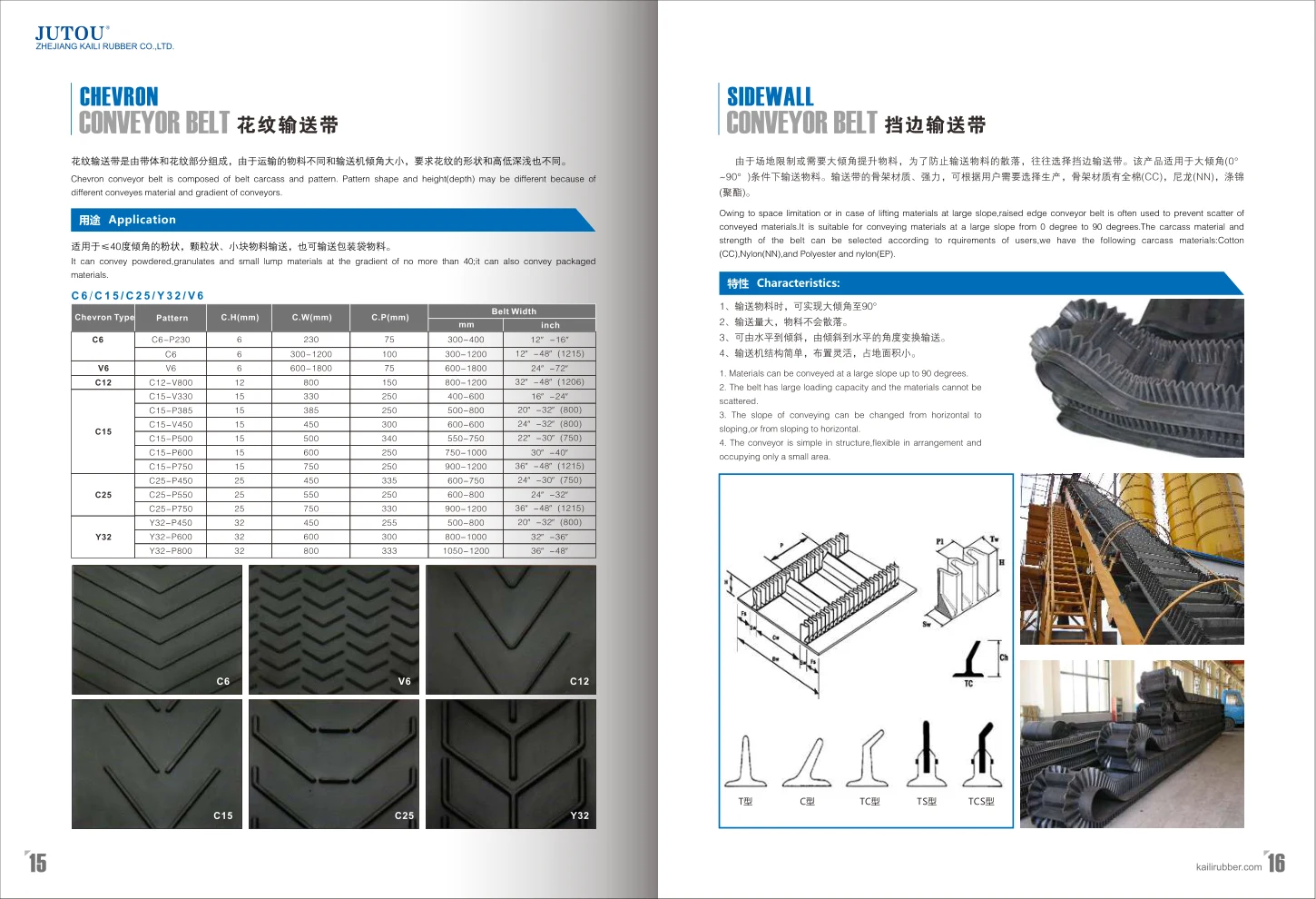

Source: supplied catalogue, printed page 15. Listed examples are not a guarantee of every combination. Confirm current availability, tolerances and acceptance criteria in the quotation.
What to send for a quotation
Incline angle, material, lump size, belt width, preferred profile and required length.
Include quantity, destination and required delivery terms. If specifications are unknown, attach an existing belt marking or a drawing.
Frequently asked
Does one chevron profile work for every incline?
No. Material shape, moisture and loading change how the load behaves. Select profile height and spacing for the actual duty; a catalogue incline is not a universal performance guarantee.
