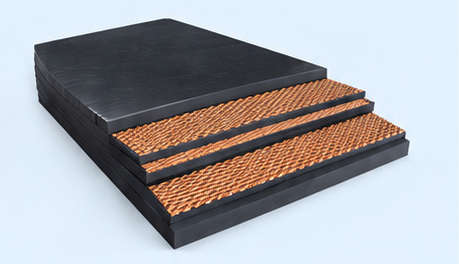

Fabric Textile
Conveyor Belt
Fabric textile conveyor belts (EP) are multi-ply belts with polyester warp and polyamide weft carcass, widely used for general material handling in mining, cement, ports, power and other industries. They offer reliable performance, good troughability and excellent cost-effectiveness.
Polyester carcass
Polyester warp and polyamide weft for good tensile strength and dimensional stability.
Multi-ply construction
Flexible multi-ply structure with good troughability and impact resistance.
Custom specification
Belt width, strength, cover grade and length can be customized according to your working conditions.
OVERVIEW
Reliable Multi-ply Conveyor Belt
for General Material Handling
Fabric textile conveyor belts use polyester (EP) fabric as the tensile carcass, with rubber covers to protect the plies. They are suitable for conveying bulk materials in a wide range of industries, and can be customized based on your specific working conditions.

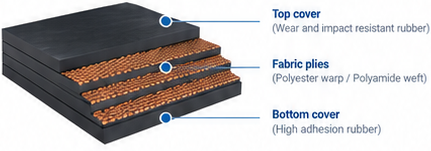

Construction illustration
KEY SPECIFICATIONS
| Item | Description |
|---|---|
| Carcass | Polyester (EP) fabric |
| Fabric series in catalogue | EP-80, EP-100, EP-150, EP-200, EP-250, EP-300, EP-350, EP-400, EP-500 |
| Ply configurations shown | 2–6 plies, depending on fabric series |
| Widths shown | 400–2,500 mm; available combinations depend on series |
| Upper cover shown | 1.5–12 mm |
| Lower cover shown | 0–4.5 mm |
Source: supplied catalogue, printed page 08. Confirm the required combination and current availability before ordering.
APPLICATIONS
Trusted in Key Industries
QUALITY
Agree the Specification. Verify the Order.
Production images below are reproduced from the supplied catalogue.
Zhejiang Kaili Rubber Co., Ltd. specializes in the development and production of rubber conveyor belts. We have modern production facilities and an experienced team, providing stable quality and flexible solutions for global customers.
Strict quality control
From raw materials to finished products
Experienced team
Professional technical support
Flexible customization
Meet different application needs
RELATED PRODUCTS
Explore Other Conveyor Belt Solutions
Steel Cord
Chevron
Conveyor Belts
For inclined material conveying, with various pattern designs.
Product illustrationView Products
FAQ
Frequently Asked Questions
EP conveyor belts are used in mining, quarrying, cement, ports and other bulk material handling applications. Select the cover grade and construction for the actual operating conditions.
Yes. Tell us the required width, strength, cover grade, length and operating conditions so our team can review your specification.
Please share your material, application, belt width, strength, cover thickness, quantity and delivery destination. If the specification is unknown, include photos of your current belt.
